PC340 Window Camera Installation
Follow these simple steps to properly install your PC340 Window Camera using the magnetic mounting system.

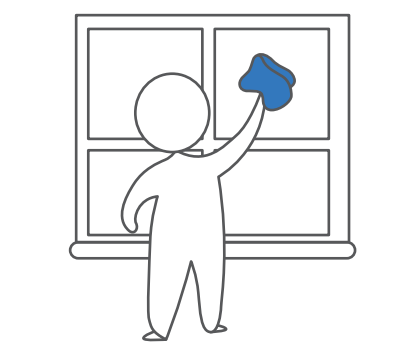

1Clean Window Glass
Determine the installation location and clean both inside and outside of the window glass.
Thoroughly clean the window glass surface for proper adhesion

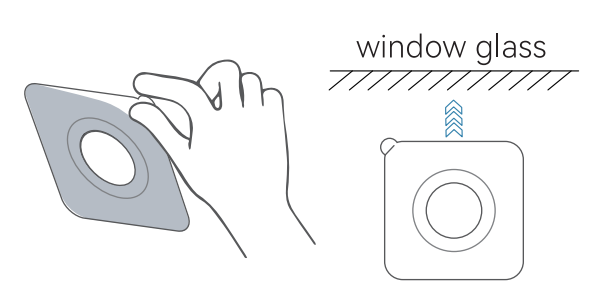

2Install Magnetic Sticker
Choose one of the magnetic stickers, peel off the protective film, and stick it on the inner window glass.
Peel and stick the magnetic sticker to the cleaned glass surface

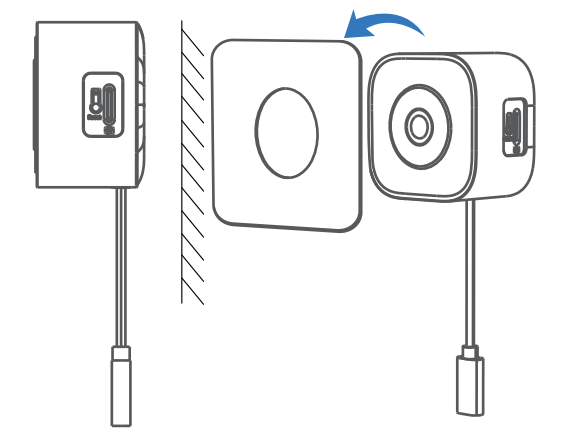

3Mount the Camera
Face the front of the camera to the window glass and attach it firmly on the magnetic sticker.
Attach camera to magnetic sticker - it will snap into place

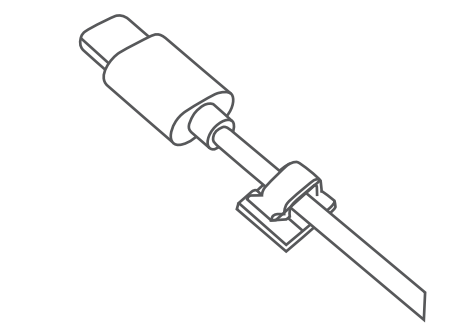

4Tidy Cords
Use the cable clips to keep your cables from being messy and tangled.
Organize power cord using included cable clips
Important Notes:
- The device needs to be installed near a power outlet and not too far from the router. We are equipped with a 3m/9.8ft power cord and 8 cable organizers, please choose a glass area with a reasonable distance to install it.
- Ensure the magnetic sticker is applied to a clean, dry surface for maximum hold.
- Avoid installing on tinted or treated glass as it may affect camera performance.
Magnetic Installation Benefits:
- Easy Removal: Simply lift the camera off the magnetic sticker for temporary removal.
- Repositionable: Easy to move to different windows as needed.
- No Damage: Magnetic installation doesn't damage window surfaces.
- Strong Hold: Powerful magnets ensure camera stays securely in place.
