PC300 Indoor Camera Installation
Follow these step-by-step instructions to properly install your PC300 Indoor Camera. Choose the installation method that best suits your needs.

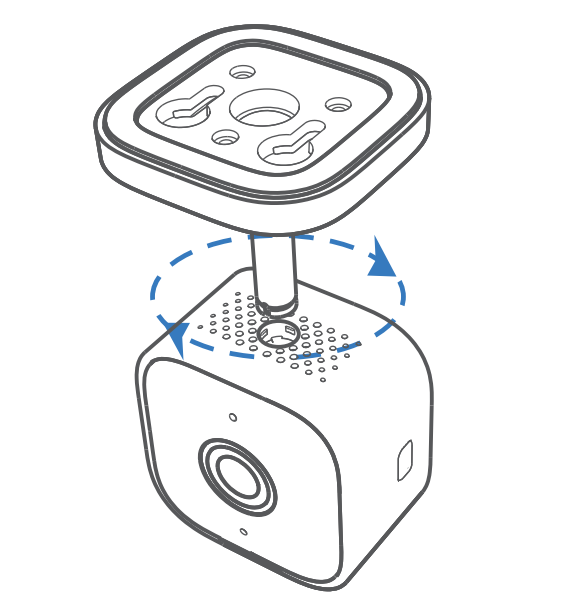

1Bracket Installation
Align the holes and rotate to the right to secure the bracket.
Align and rotate the bracket to secure
2Installation With Screws

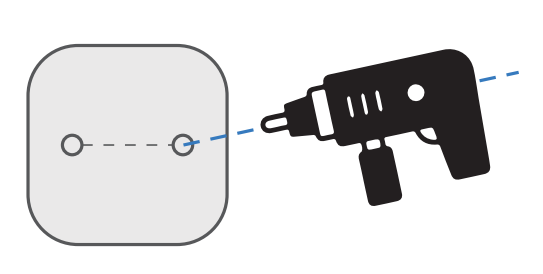

1Mark Position
Place the mounting template where you want to mount the camera, then drill two holes.
Use the mounting template to mark drilling positions
2Insert Screws
For wall mounting, insert two anchors into holes and screw the screws into the anchors.
Install anchors and screws into the wall

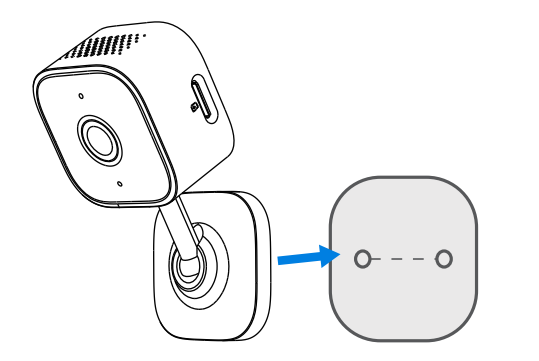

3Secure Camera
Hang the camera on the screws.
Hang the camera on the installed screws

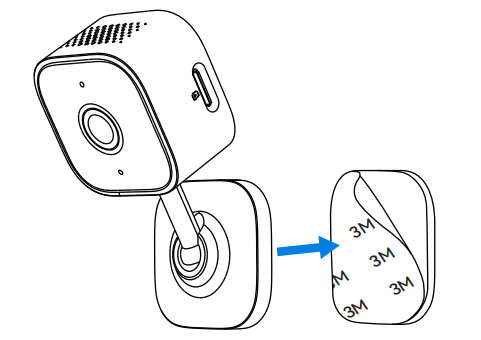

3Installation With Sticker
Paste the 3M sticker where you want to install the camera, and then stick the camera on the sticker.
Apply 3M sticker and attach the camera
Installation Tips:
- Ensure the surface is clean, dry, and free of dust before applying the sticker.
- Apply firm pressure for 30 seconds to ensure proper adhesion.
- Not recommended for textured or uneven surfaces.
- Ensure the camera is within WiFi range of your router.
