BM400 Baby Monitor Installation
Follow these simple steps to properly install your BM400 Baby Monitor. Ensure you have all necessary tools before beginning the installation process.

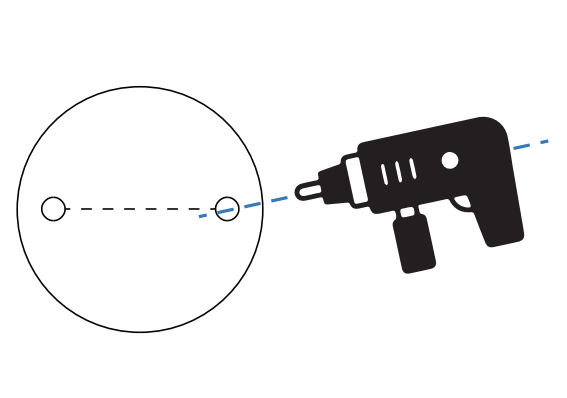

1Mark Position
Determine where you want to mount the camera and mark it through the mounting bracket, then drill two holes.
Mark the drilling positions through the mounting bracket

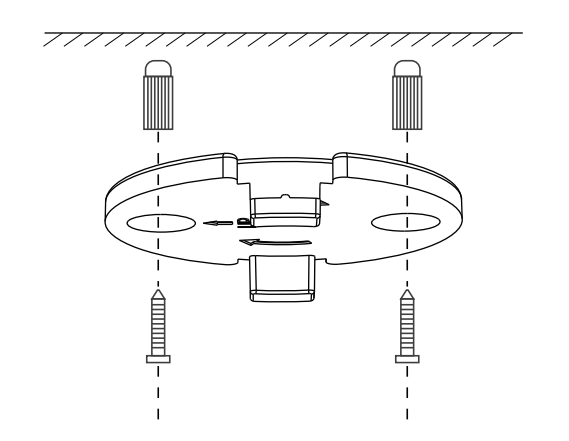

2Mount Bracket
Affix the camera bracket using the screws. For wall mounting, insert two anchors into the holes and use the screws to affix the camera bracket over the anchors.
Secure the bracket with screws and anchors
3Secure the Camera
Attach the camera on the bracket and rotate to secure the camera.
Attach and rotate the camera to lock in place
Installation Tips:
- Test the camera view before fully tightening all screws.
- Make sure the camera is within WiFi range of your router.
- Consider the camera's field of view when choosing the mounting location.
